Hydraulic Workshop Press Roll-Frame

HWPR series

Pressing Capacity 100 and 160 tons

Working Width 1100 - 1500 mm

Electric Pump and Hand Pump

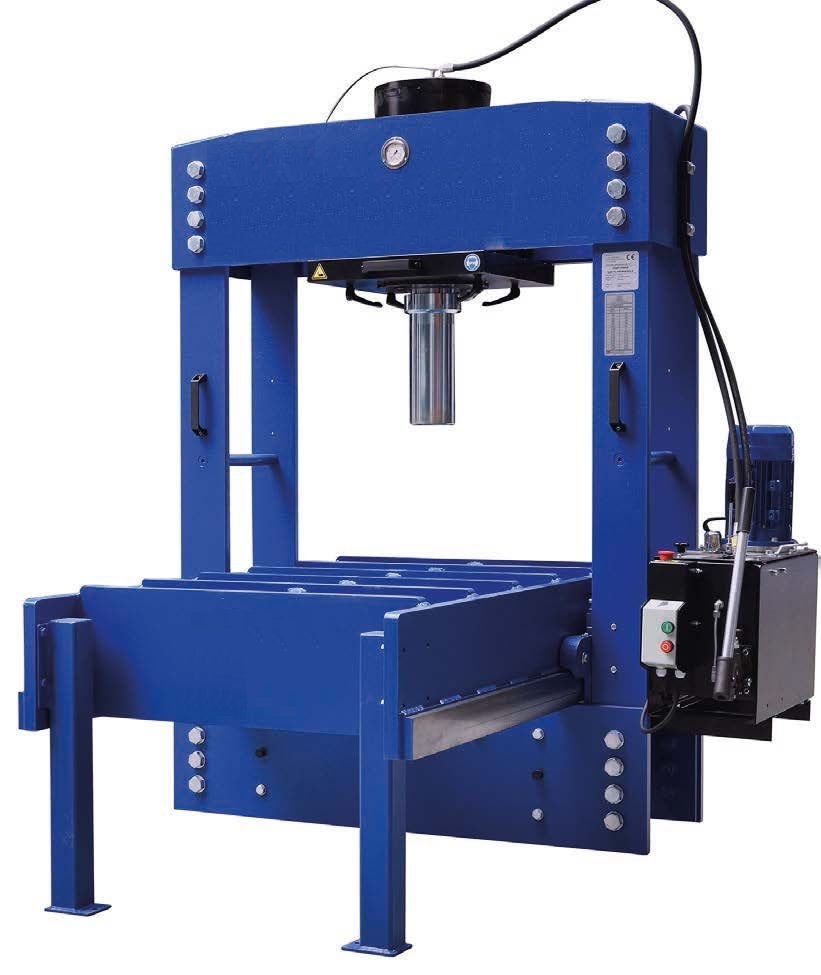

Hydraulic Workshop Roll-Frame Press is a widely used tool in manufacturing and repair workshops for various applications such as straightening shafts, mounting and dismounting transmission parts, etc., and an ideal solution for large and heavy work pieces.

FEATURES;
  • Long stroke Double-acting hydraulic cylinder and cylinder extensions

  • Equipped with a sliding cylinder to work on off-center work pieces

  • Manually movable rolling frame to navigate pressing point easily.

  • Dial pressure gauge to show working pressure and consequently applied force

  • Two-speed electric Pump with electric valve for fast operation

  • Joystick or optional remote control for the most convenient and safe operation.

  • Integrated hand pump when high control is needed for more precise jobs.

  • Stable and large Stationary worktable

  • Alloy steel, stable and heavy duty design of the frame built to the last

  • Motorized movable rolling frame and Special designs can be studied on request.

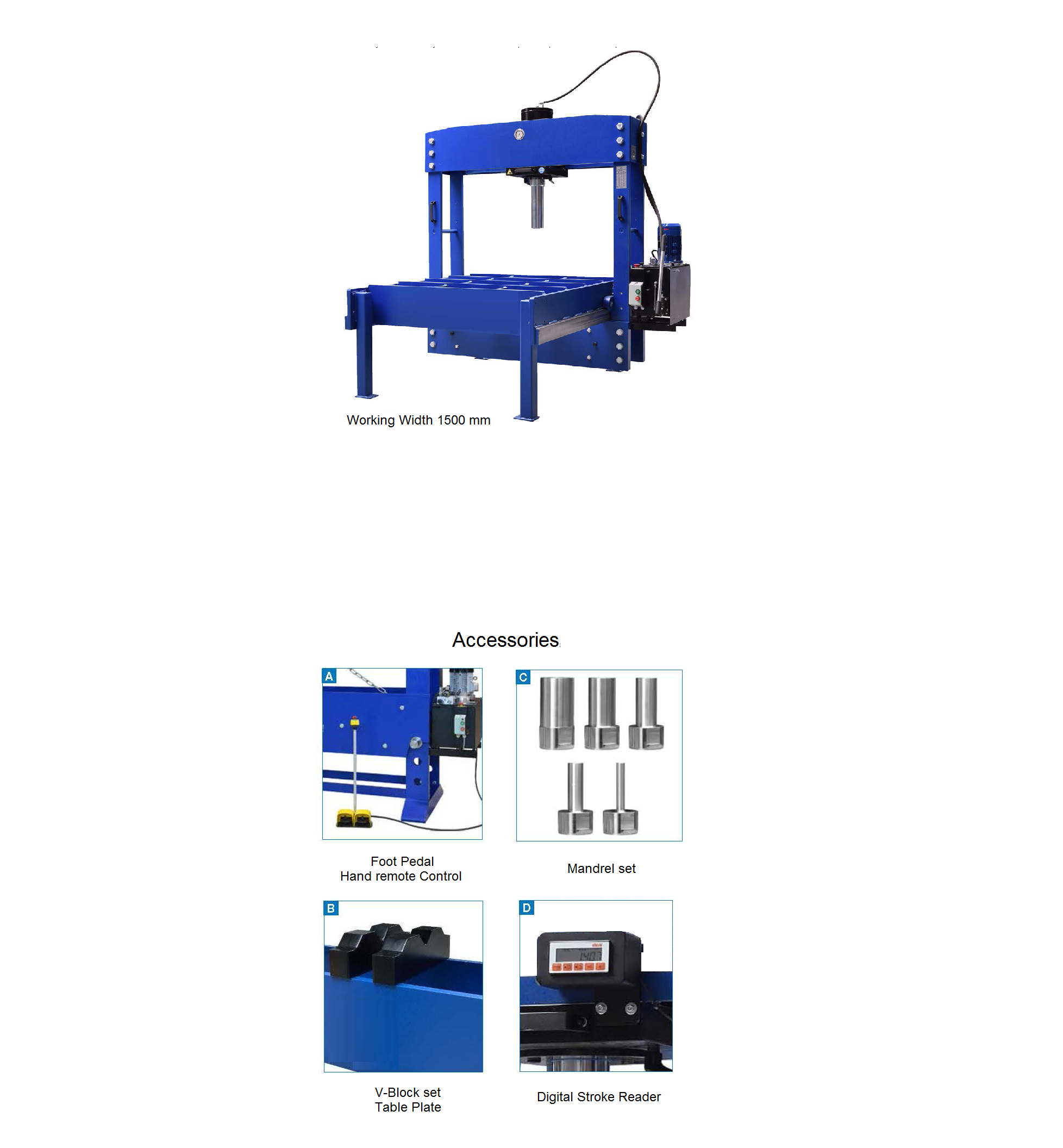

Optional Accessories:

  • Foot pedal, Hand remote control

  •  V-block or table plate

  • Mandrel set different sizes

  • Digital Piston Stroke reader
Download Flyer Send us inquiry

Technical Specifications:

Model

Press Force

Working Width

Max Working Pressure

Piston Stroke

Pressing speed

Free Approaching Speed

Retracting Speed

 Electric Motor Specs.

Oil Capacity

Weight
- ton mm Bar mm mm/sec mm/sec mm/sec Power (kw)

Volt(V) /Phase

 Frequency (Hz) liter kgs
HWPR100-1100 100 1100 258 380 2.47 7.54 9.06 2.2 400/3 50/60 46 1658
HWPR100-1500 100 1500 258 380 2.47 7.54 9.06 2.2 400/3 50/60 46 1950
HWPR160-1100 160 1100 255 400 2.40 7.48 9.35 3 400/3 50/60 57 2265
HWPR160-1500 160 1500 255 400 2.40 7.48 9.35 3 400/3 50/60 57 2600

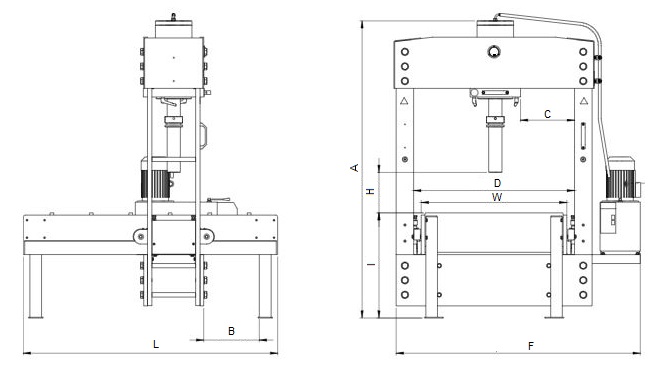

Dimensions:

Model

Table Lenght

L

Table Width

W

Table Height

I

Working Height

H

Working Width

D

Total Height

A

Total Width

F

 Cylinder Manouver

C

 Cylinder Manouver

B

Weight
- mm mm mm mm mm mm mm mm mm kgs
HWPR100-1100 1740 996 720 0-700 1100 2035 1670 0-700 0-1080 1685
HWPR100-1500 1740 1396 720 0-700 1500 2045 2070 0-1100 0-1080 1960
HWPR160-1100 1740 996 760 0-700 1100 2105 1725 0-700 0-1080 2265
HWPR160-1500 1740 1396 760 0-700 1500 2115 2125 0-1100 0-1080 2600
