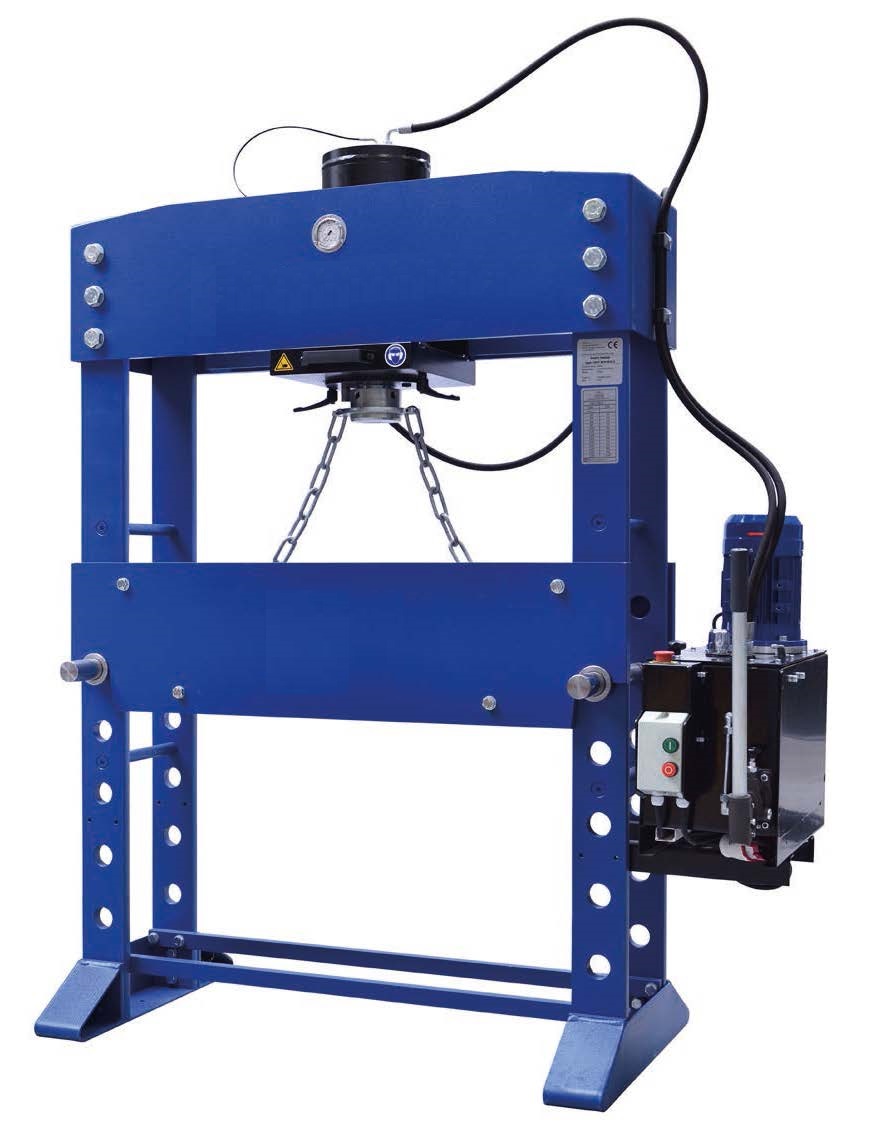

Hydraulic Workshop Press H-Frame

HWP series

Pressing Capacity 15 - 300 tons

Working Width 650 - 1750mm

Electric Pump and Integrated Hand Pump

Hydraulic Workshop Press is a widely used tool in manufacturing and repair workshops for various applications such as mounting and dismounting transmission parts, straightening shafts, broaching keyway, punching, Bending, forming sheets, etc .......

FEATURES:

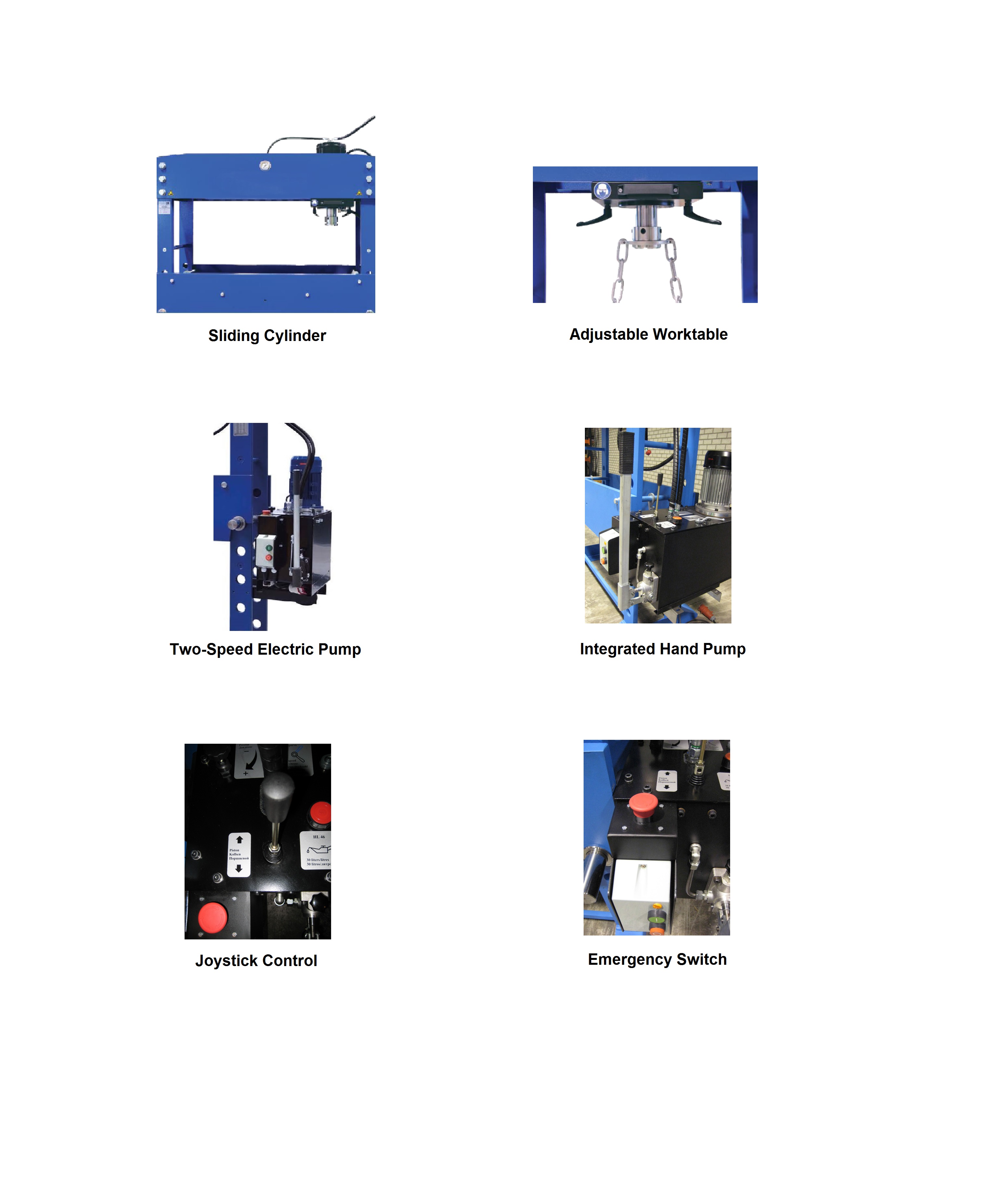

  • Long stroke Double-acting hydraulic cylinder to work faster on tall work pieces

  • Equipped with a sliding cylinder to work on off-center work pieces

  • Dial pressure gauge to show working pressure and consequently applied force

  • Two-speed electric Pump with electric valve for fast operation

  • Joystick or optional remote control for the most convenient and safe operation

  • Integrated hand pump when high control is needed for more precise jobs

  • In-Height adjustable worktable with the help of main cylinder

  • Alloy steel, stable and heavy duty design of the frame built to the last

  • Special design of press can be studied on request
Download Flyer Send us inquiry

Technical Specifications:

Model

Press Force

Working Width

Max Working Pressure

Piston Stroke

Pressing speed

Free Approaching Speed

Retracting Speed

 Electric Motor Specs.

Oil Capacity

Weight
- ton mm Bar mm mm/sec mm/sec mm/sec Power (kw)

Volt (V)/Phase

 Frequency (Hz) litr kgs
HWP15-650 15 650 232 600 30 30 40 5.5 400/3 50/60 34 305
HWP30-750 30 750 221 380 3 9.8 14 1.5 400/3 50/60 36 385
HWP60-750 60 750 259 380 2.87 9.5 12 2.2 400/3 50/60 38 540
HWP100-1100 100 1100 258 380 2.54 9.8 12 3 400/3 50/60 46 970
HWP100-1500 100 1500 258 380 2.54 9.8 12 3 400/3 50/60 46 1145
HWP160-1100 160 1100 255 400 2.40 7.48 9.35 3 400/3 50/60 57 1195
HWP160-1500 160 1500 255 400 2.40 7.48 9.35 3 400/3 50/60 57 1430
HWP200-1300 200 1300 243 400 1.20 6.00 7.43 3 400/3 50/60 64 1690
HWP300-1750 300 1750 260 480 1.80 4.90 6.20 5.5 400/3 50/60 100 3150

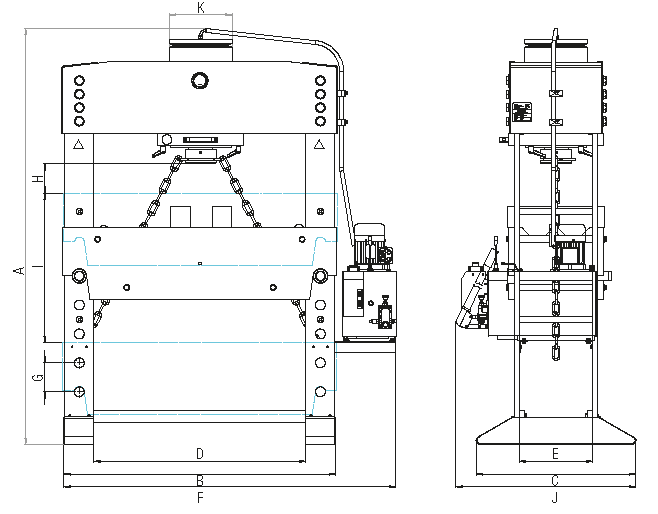

Dimensions:

Model

Working Height

H

Working Width

D

Total Height

A

Width

B

Total Width

F

Total Depth

J

Table Manouver

I

Pin distance

G

Column Thickness

E

feet Lenght

C

Cylinder Diameter

K
mm mm mm mm mm mm mm mm mm mm mm
HWP15-650 112 650 2300 820 1140 700 900 100 200 494 110
HWP30-750 200 750 2120 1000 1315 805 750 150 260 695 160
HWP60-750 197 750 2120 1000 1315 805 750 150 260 695 200
HWP100-1100 180 1100 2140 1350 1665 865 750 150 300 755 250
HWP100-1500 130 1500 2080 1750 2065 865 750 150 300 755 250
HWP160-1100 180 1100 2200 1410 1725 985 750 150 380 825 325
HWP160-1500 180 1500 2270 1810 2125 935 750 150 380 825 325
HWP200-1300 180 1300 2270 1610 1925 975 750 150 410 865 368
HWP300-1750 180 1750 2250 2120 2550 1085 531 177 500 985 420

Parts and Accessories:

The list of parts, spare parts and accessories used with hydraulic workshop press HWP series will be as bellow:

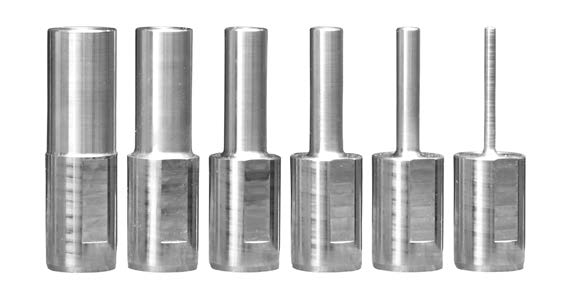

 Mandrel set

Model PLS0010000

Mandrel set Dia. 18, 33, 45, 58, 72 mm for the 60 and 100 ton press. Mandrel set available only for the Presses 60 and 100ton

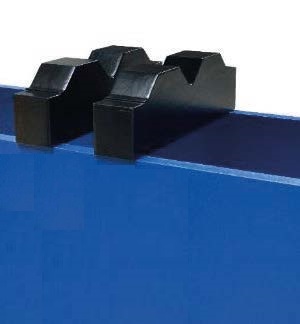

 V-Block

V-block set 2 pieces for 30 and 60 ton press Model PP100007

V-block set 2 pieces for 100 ton press Model PP100008

V-block set 2 pieces for 160 ton press Model PP100009

V-block set 2 pieces for 200 ton press Model PP100010

V-block set 2 pieces for 300 ton press Model PP100011

Foot Pedal

Model PP10001

To have the hands free and control and operate the press at the same time.

This is a same part Number for all presses of different capacity.

Remote Control

Model PP10002

To control the Press remotely from far behind when you concern health and safety.

This is a same part Number for all presses of different capacity.
