Mechanical Flange Spreader

Model MFS9

Capacity 9.4 Tons

Max. Spread 81 mm

FEATURES:

• Specially designed to open parallel wedges and spread flange joints safely.

• Ideal solution to spread small&medium Dia. flanges with no limitation on flange thickness.

• Screw Operated mechanism and no need to hydraulic components.

• Max. design capacity is 9.4 tons and associated applied torque on the power screw is Max. 203 N.m (150 ft.lb)

• Applicable at minimum access gap of 6 mm (0.24").

• Robust wedges to carry heavy loads in a tight gap.

• Stepped Blocks can be used individually or in pairs to increase the max. spreading distance of the MFS9 to 81 mm

• Max. Wedge opening is 25 mm and Max. Spread when using stepped block is 81 mm.

• It is recommended that tools are used in pairs giving totally 18.8 Tons for an even and higher spreading force when needed.

• The tool is including safety block to remove the spreader and hold the loading.

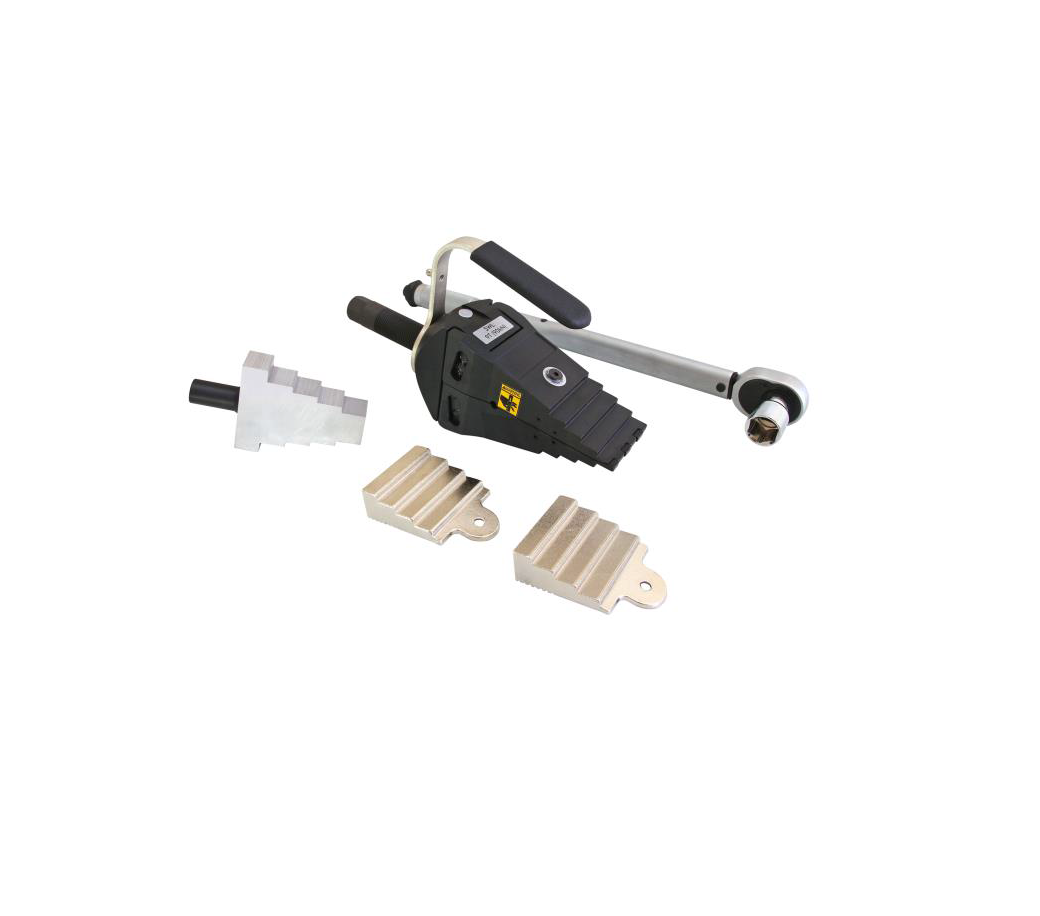

The MAX package model MFS9-MAX includes:

• 1×Mechanical Flange Spreader MFS9

• 1×Safety Block MFS9SF

• 1×Pair of Stepped Block MFS9SB

• 1×Torque Wrench and socket 22mm
